JANSi UVEX Imaging Systems
SWISSCI and JAN Scientific have partnered to bring the UVEX crystal imaging systems to the market. With over 300 installations around the world, the UVEX, available as a stand alone microscope or a hotel, is rapidly becoming the crystallographer’s go-to tool for the rapid detection and intuitive classification of protein crystals.
JANSi UVEXm
Product Specifications
- Cooled high-efficiency 6 MP monochrome UV camera
- LED light sources, low maintenance and long lasting
- An industry-leading resolution of 0.2 micron/pixel with optional objectives
- UV excitation/emission optimised for Trp fluorescence
- Brightfield and UV imaging or 15X objectives
- Intuitive software with computer and monitor.
Includes
Tray table, 5X and 15X objectives, brightfield and UV imaging, Computer , monitor and all software
Options
Motorized Z, Manual X/Y stage, UV absorbance, cross-polarisers, additional objectives.
Dimensions: 30 x 20 x 50cm
Weight: 12 kg.
Power: 110-240 V 50 Hz/60 Hz 60 kWh
Order information
Item: UVEXm Imaging system
Order Code: UVEXm
Contact: sales@swissci.com

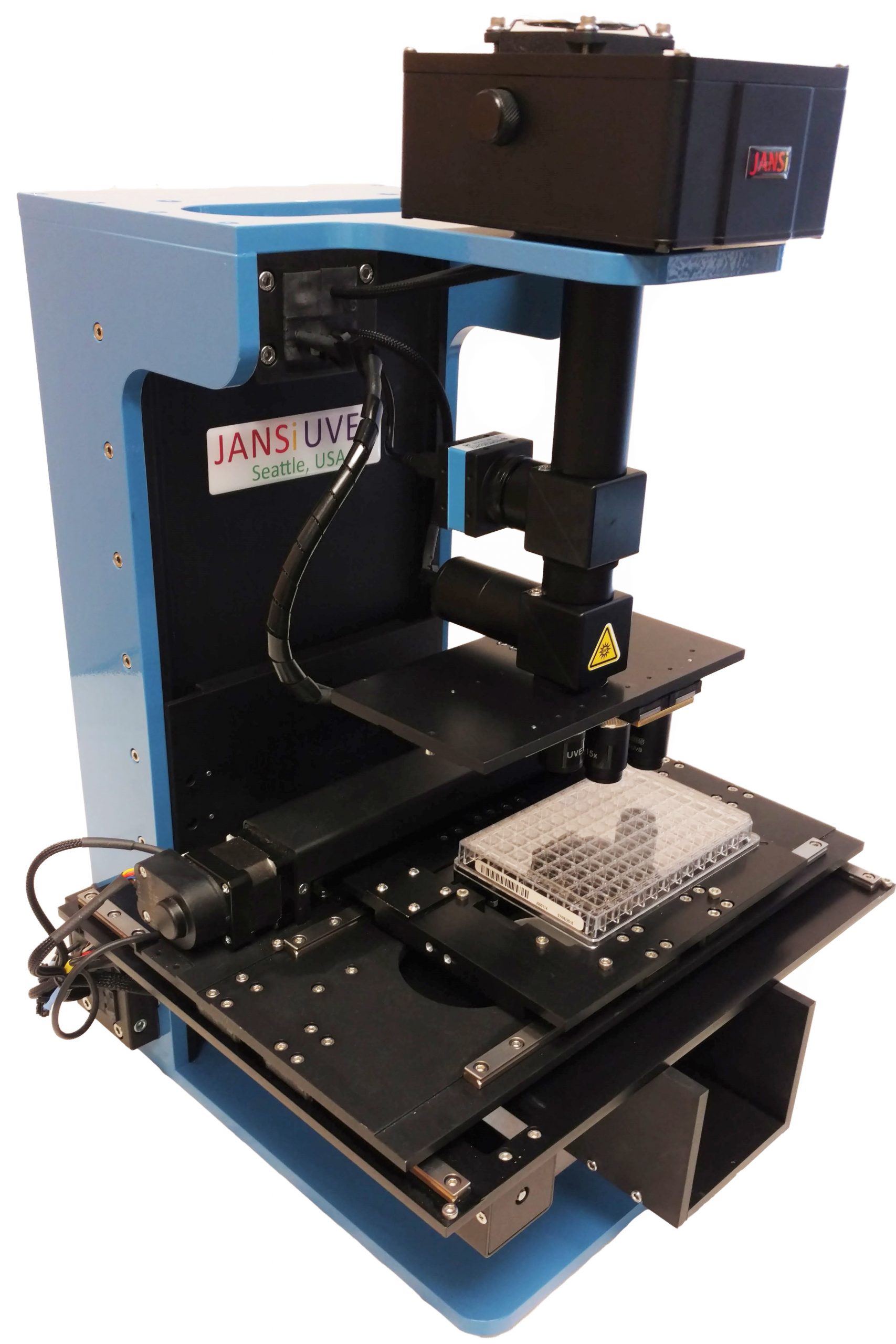

JANSi UVEXp
Product Specifications
- Autofocus and dropcentering
- Extended depth imaging
- Cooled high-efficiency 6 MP monochrome UV camera
- LED light sources, low maintenance and long lasting
- An industry-leading resolution of 0.2 micron/pixel
- Objectives; 5X, 10X (or 15X) and 20X
- UV excitation/emission optimised for Trp fluorescence
- Automated imaging of ANSI/SLAS 1-2004 crystallisation plates
- Intuitive software and management software with computer and monitor.
Options
UV absorbance, colour cross-polarisers, additional objectives
UVEXp can be retrofitted into UVEX plate hotels.
Dimensions: 20 x 35 x50 cm
Weight: 16kg
Power: 110-240 V 50 Hz/60 Hz 120kWh
Order information
Item: UVEXp Imaging system
Order Code: UVEXp
Contact: sales@swissci.com

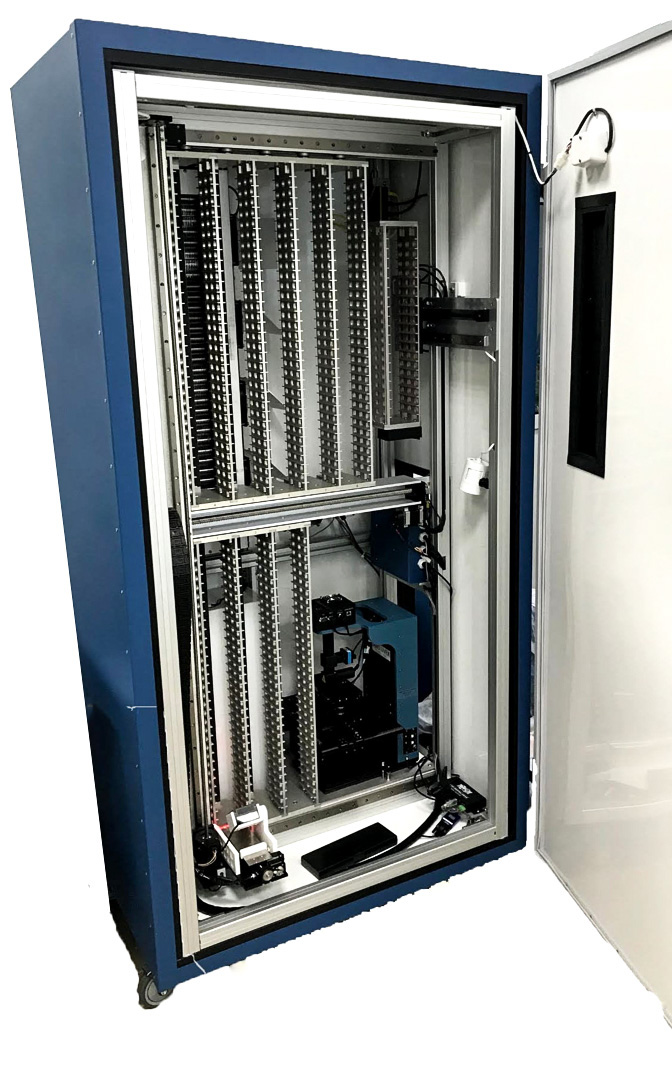

JANSi UVEXps 256/600
Product Specifications
- Built-in sensors to monitor the status of a plate
- Collision detection and recovery
- Built-in barcode scanner
- Configurable storage shelves for Midi, Low and LCP SBS footprint plates
- Shelf capacity can be changed in field (some restrictions apply)
- Built in IR cameras
- Barcode printer with 7,000 labels
- Smooth transfer of plates
- Multiple configurations
- Low vibration operation to move plates
Options
Temperature control (available for UVEXps256)
Peltier temperature regulation (available for both models)
Dimensions / Weight (Approx)
UVEXps256: w90 x d72 x h212 cm | 350kg
UVEXps600: w90 x d95 x h212 cm | 450 kg
Power
110-240 V 50 Hz/60 Hz 120 kWh
Order Information
Item: UVEXps 256/600 Plate Hotels
Codes:
UVEXps256: UVEX-PS-256 | UVEX-PS-256-PTR I UVEX-PS-256-TC
UVEXps600: UVEX–PS-600 | UVEX-PS-600-PTR
Contact: sales@swissci.com
UVEX Crystal Images
UVEX Interface | Image Management
Crystal Detect
Crystal detect is a powerful user interface to control all aspects of the UVEX system.
Webview
Webview is an intuitive, multi-seated and unrestricted crystal viewing and cataloguing program. Webview is accessed via the user’s internet browser.
